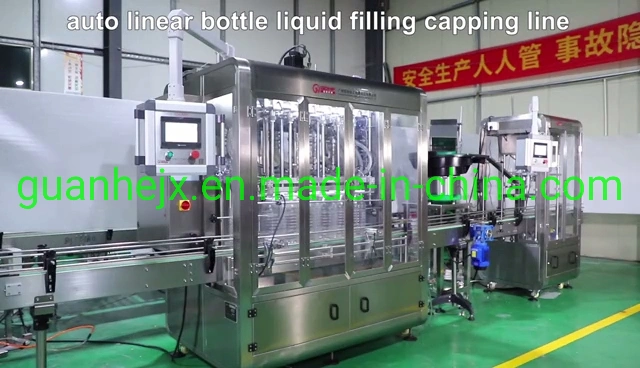

Auto detergent shampoo liquid filling capping machine line with mixer
Liquid: as below table
Bottle volume: as below table
Output capacity: 1000BPH-1000ML
Bottle picture:
1 Mixer
2 Servo motor filling machine:
This automatic piston-style liquid filling machine adopts stainless steel plunger-style metering pump to fill, and it can use different filling heads to meet customers' production demands, Besides, it can also link to other cap feeder and capping machines in the production line. It takes up only a little room, economical and practical, widely used for filling liquids in industries like pharmaceuticals, pesticides, chemicals, food, cosmetics, etc. It is in full compliance with the GMP requirements.
Features:
Machine parameter:
Machine electronic system:
2 Auto screw capping machine:
This multifunction capping machine is suitable for various shape screwing caps. It is wildly used for cosmetic, detergent product pesticide industries. Easy operation, width adjusting score, with high efficient quality.
Parameter:
Electric coomponents:
Our factory's profile:
Liquid: as below table
Bottle volume: as below table
Output capacity: 1000BPH-1000ML
Bottle picture:

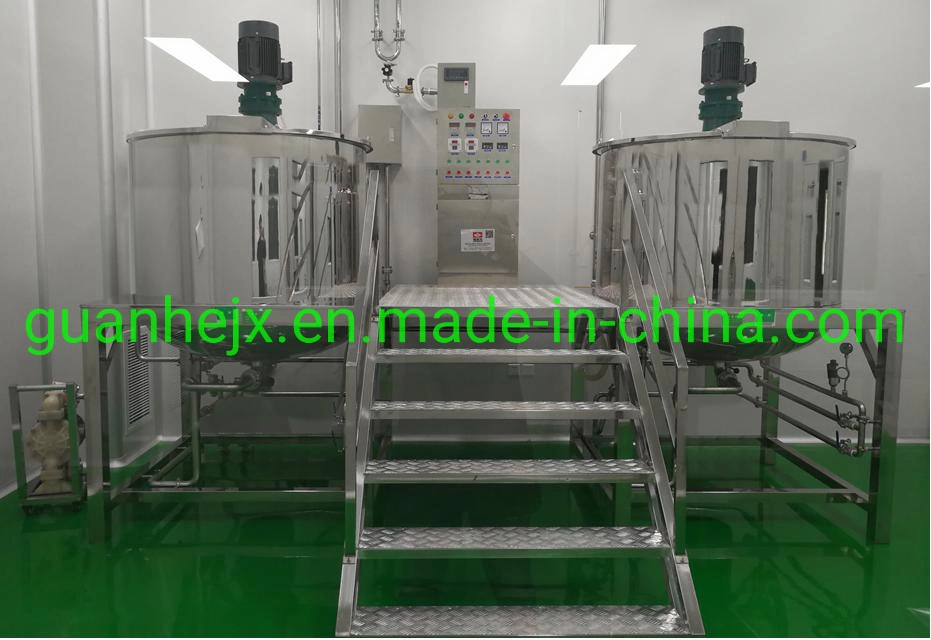

1 Mixer| No. | Item | Description | Remark |
| 1 | Volume | Working volume 2000L | Customize design volume Based on drawing size |
| 2 | Pot material | SUS316 inner pot--Jacket SUS304--outer shell SUS304 | |
| 3 | Thickness | 3-layer: 6mm SUS 316 inner; 5mm SUS 304 mid layer; 3mm SUS 304 outside | |
| 4 | Heating | Steam in the jacket | |
| 5 | Mixing parameter | 4KW; 0-63rpm with inverter speed-controlling | |
| 5 | Inverter | 4KW | |
| 6 | Voltage | 380V 50HZ 3P | |
| 7 | Material out way | on tank bottom, with SUS316L ball valve connection | |
| 8 | Usage | Installed on clients' operation platform | |
| 9 | Outer/inner surface | Polishing treatment, 300U; fully-welded, no dead corner | |
| 10 | inner pot size | D1300mm*H1660mm(or customize) | |
| 11 | Tank top | 2-side door-opening type | |
| 12 | Customized | With mixed baffle on the ball for better mixing effect | |
| 13 | Others | Equipped with SUS304 bracket & common steel transportation legs; SUS304 electrical cabinet, material inlet, pure water inlet, spray ball ect | |
| 14 | Main parts brand | Motor: Germany Siemens Converter: Taiwan Delta Switches & indicators: French Schneider | |
2 Servo motor filling machine:
This automatic piston-style liquid filling machine adopts stainless steel plunger-style metering pump to fill, and it can use different filling heads to meet customers' production demands, Besides, it can also link to other cap feeder and capping machines in the production line. It takes up only a little room, economical and practical, widely used for filling liquids in industries like pharmaceuticals, pesticides, chemicals, food, cosmetics, etc. It is in full compliance with the GMP requirements.
Features:
- Adopting plunger-style metering pump and pneumatic-control stainless steel valves to fill, suitable for filling various viscous liquids.
- pneumatic-control injection pump is convenient to adjust filling dosage accurately, with high filling precision.
- With high-position liquid storage, liquid level switch automatically controls material feeding.
- Filling heads with anti-drip device and with function of back-sucking, ensuring no phenomena of the wire drawing and dripping and leakage.
- The whole machine is easy to clean and disinfect, convenient to change different specifications.
- Imported PLC control system, frequency conversion, no filling without bottles, with high degree of automation.
- Electric & pneumatic parts are all world-famous brands, like Japan Mitsubishi, France Schneider .
Machine parameter:
| Item | GHAGF-4 | Air pressure | 0.4-0.6mpa |
| Filling nozzles | 4 | Voltage | 220v 50/60hz |
| Filling range | 250~3000ml | Size | 2800*1200*2200 |
| Filling accuracy | ±1% | Weight | 800kg |
| Speed (1000ml) | 900~1000BPH |
Machine electronic system:
| PLC | Taiwan Delta | Pneumatic components | Taiwan AirTAC |
| Touch screen | Taiwan Weinview | Conveying motor | French Schneider / Germany Siemens |
| Frequency converter | Taiwan Delta / French Schneider | Photoelectricity | Japan Keyence |
| Low-voltage electricals | French Schneider | cylinder | Taiwan AirTAC |
2 Auto screw capping machine:
This multifunction capping machine is suitable for various shape screwing caps. It is wildly used for cosmetic, detergent product pesticide industries. Easy operation, width adjusting score, with high efficient quality.- Drawing the cap-screwing experience from home and abroad, our company especially designs this high-speed linear capping machine for the diversity of bottles & caps and screwing-styles, like various plastic threaded caps, spray pump caps and so on.
- Linear bottle entrance & bottle exit, this machine has wide adaptability for not only round bottles but also for flat square bottles & alien bottles, with flexible application, convenient operation & high efficiency.
- When bottles of different sizes are to be capped, no need change any parts, just do slightly adjustment via handle on the machine, very easy to operate & maintain.
- Also it's with two sets bottle-clamping ring belt apparatus, suitable for unstable & tall bottles, widely used for various bottles
| Applicable bottle diameter | Φ20-Φ96 mm | Bottle cap size | Φ10-Φ70 mm |
| Production capacity | 1500BPH | Air pressure | 0.5-0.7Mpa |
| Rated voltage | 220V 50/60HZ | Gross weight | 400kg |
| External dimension(LWH) | 2000×850×1680mm | Total power | 2kw |
Electric coomponents:
| PLC | Taiwan Delta | Pneumatic components | Taiwan AirTAC |
| Frequency converter | Taiwan Delta / French Schneider | Conveying motor | French Schneider / Germany Siemens |
| Low-voltage electricals | French Schneider | Photoelectricity | Japan Keyence |
| Touch screen | Weinview | cylinder | Taiwan AirTAC |
Our factory's profile:
