Automaitc Adhesive Sticker Bottle Front Back Two Sdies Labeling Machine
SKILT PARTNER
Product Description
1.The Scope of Application:
The model DLM-A Labeling machine, suit for different kinds products need labeling on on front and back sides at the same time, also suit for round bottle labeling warp around;
(P.S. our labeling machine can be designed according to your needs)
2. Device Characteristics:
Electrical cabinet,Conveying mechanism,Separate bottle device,Press bottle device,Roll label device,Brush label device,1# and 2# labeling engines,Operation system and control system
3. Device Advantages:
1) Control system: American AB brand PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: 10 inch touch screen, directly visual interface easy operation ,with Chinese and English two kinds language, also rich with help function and fault display function.
3) Check system:Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for the worker.
4) Send label system: American AB high-power servo control system, stable with high speed.
5) PARAMETER SAVE:can save 30 groups labeling parameters, when change the bottles, don't need reset parameters, just adjust the machine part is ok.
6) Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
7) Machine Material:The machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
8) Labeling way : use the servo send label system to send label on product surface.
9) Low voltage circuit all use the German Schneider brand.
Technical Parameter :
| Model | DLM-A |
| Driving Mode | Servo motor |
| Yield(pcs/min) | 20-200( can adjustable ) |
| Operating direction | Left or Right |
| Conveyor Speed(m/min) | ≤40 |
| Labeling Accuracy | ±1.0 mm |
| Label roll inner diameter | 76 mm |
| Label roll outer diameter | 350 mm(max) |
| The suitable size of label | Standard size: H: 15-230 mm L: 15-300 mm (Other size can customized ) |
| The suitable size of bottles | Can customized |
| Printer device use air | 5kg/cm ² |
| Power(w) | 1000W |
| Weight(kg) | 350 |
| Conveyor height | 900±50mm (Height can customized) |
| Machine size | 3000(L) l800(W) 1800(H)mm |
| Voltage (In China) | AC220V 50/60HZ Single phase (Can customized ) |
Main Electrical Configuration :
| No | Name | Model | Unit | Brand |
| 1 | PLC control system | 288-1ST20-OAAO | 1 Set | SIEMENS |
| 2 | Touch-screen | 648-OCC11-3AXO | 1 Piece | SIEMENS |
| 3 | Servo motor | 2004-RZ08BAIAN3 | 2sets | America AB |
| 4 | Drive | 2003-CSD3-08BX2 | 2sets | America AB |
| 5 | Frequency converter | 6SL3210-5BB15-5UV0 | 1 set | SIEMENS |
| 6 | photoelectric sensor (check bottle) | FS-N18N | 1 set | Japan KEYENCE |
| 7 | Photoelectric sensor (Check opaque label) | GS61/6.2 | 2 sets | German Leuze |
| Photoelectric sensor (Check opaque and transparent label) | GSU 14B/66.3-S12 | 2 sets | German Leuze | |
| 8 | Main transport motor | M2BAX-0.55KW-4P-B14 | 1 set | Switzerland ABB |
| 9 | Separate bottle Motor | 40W1:30 | 2 sets | German JSCC |
SKILT NOTES
1. Q: What label material does your machine use ?
A: Self-adhesive sticker.
2. Q: The machine is automatic or semi-auto?
A: SKILT only produce automatic machine .
3. Q: Which kinds of machine suit for our products labeling requirement?
A:Pls supply us your products and label size ( product picture with label on it is rather helpful), then we will suggest you the suitable machine for reference.
4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .

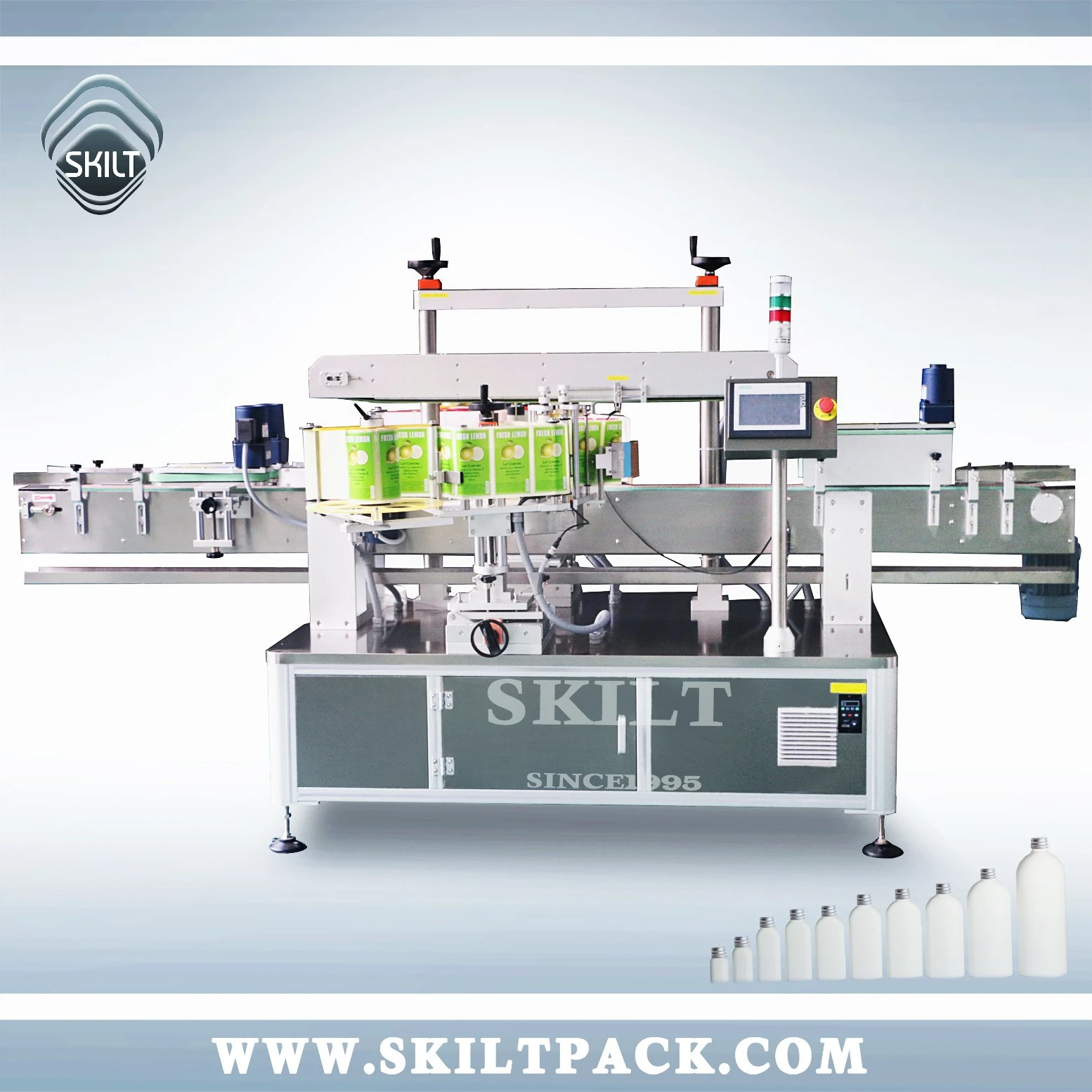

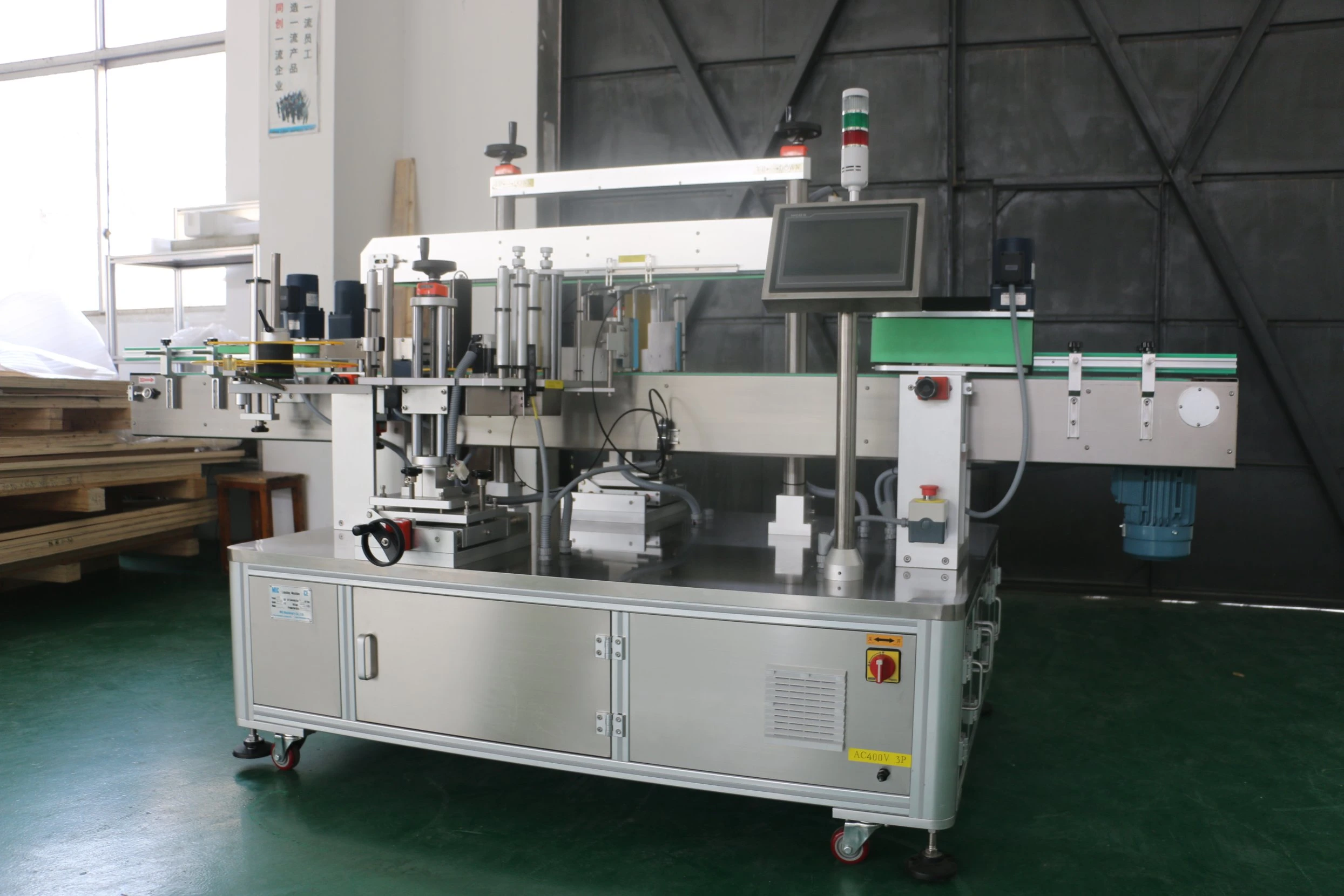

Machine Detailed Images
