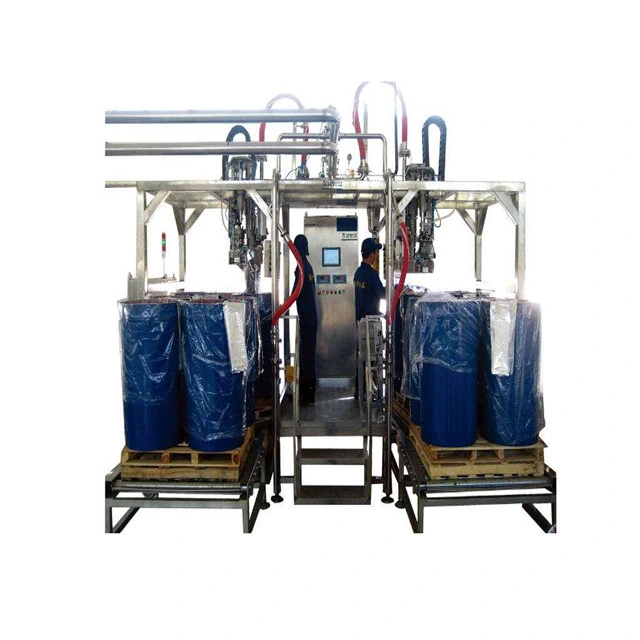

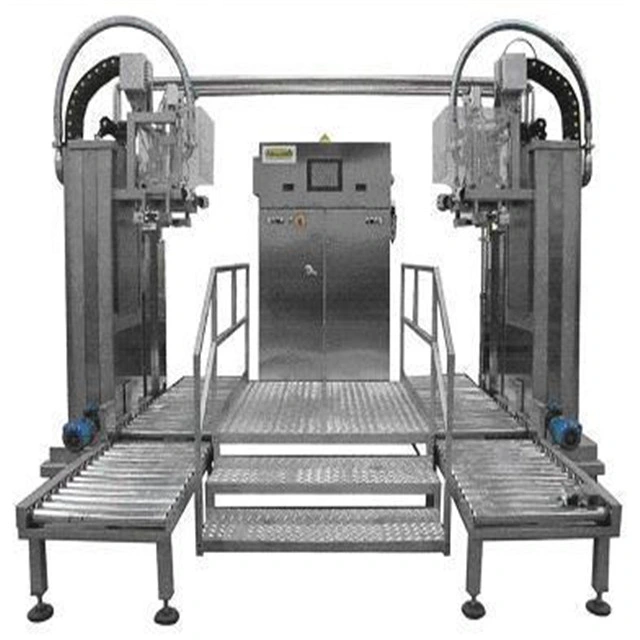

Introduction
1. introducing international advanced production technology.
2. It integrates machine, electricity, apparatus and gas together
3. equipped with electronic weighing and electronic display.
4. It is widely applicable to the quantitative filling of medium or large barrels of viscous, non-viscous, corrosive and non-corrosive liquids of vegetable oil, lubricants, chemical liquids, etc.
Configuration and Performance.
1. Adopt US METTLER TOLEDO weighing sensor of high accuracy, less than 0.3% error, and stable performance.
2. Automatically peeling to realize net weight filling or gross weight filling.
3.Adopt dual speed filling to restraint the occurrence of overflowing
4.Only by setting the instruments, the capacity be regulated freely. It is convenient and fast.
Main Technical Parameters.
Name of parameter | Unit | KML-10W |
Head Number | pcs | 2-6pcs |
Filling weight | kg | 5-50kg |
Entrance pressure | Mpa | 0.2-0.25 |
Production capacity | Barrel/h | 150-350 |
Quantitative error | % | ≤0.3% |
Source voltage | V | AC220V 380V ±10% |
Consumed power | KW | 2 |
Gas supply pressure | Mpa | 0.55-0.8MPa |
Gas consumption | m3/min | 0.6 |
