Product Description
1.The Scope of Application:

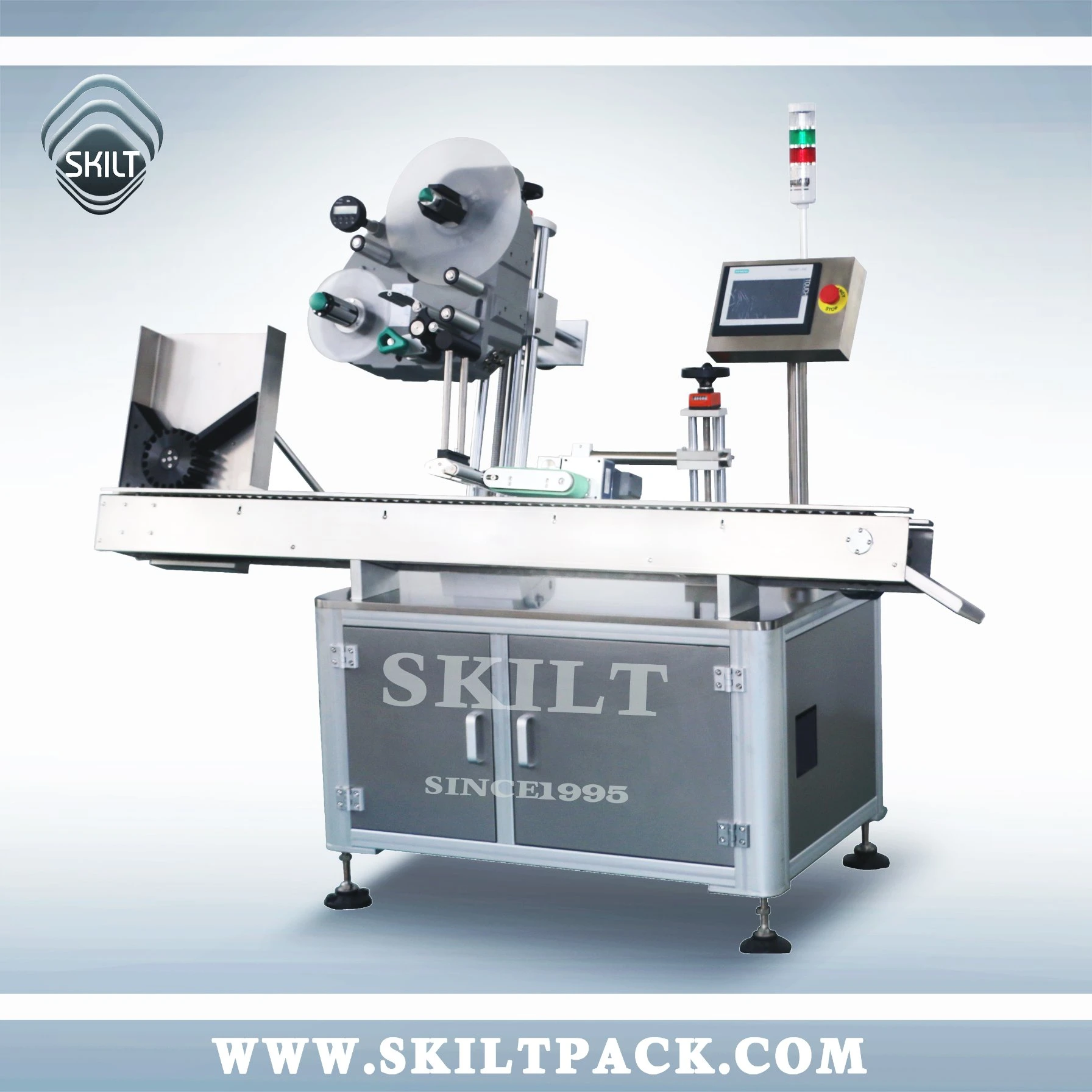

Model PWM-A Horizontal way labeling machine suit for small round product which can not stand when labeling,such as ampoule ,vials,blood collection tube, pen,sausage and so on.
(P.S. our labeling machine can be designed according to your needs)
2. Device Characteristics:
Adopt mature technology PLC control system,operation is stable and high-speed;
Using touch-screen control operating system, simple and efficient for operation;
Advanced technology of pneumatic coding system, print the batch number and expiry date clearly;
Transmission-type rolling bottle device, make sure the label attached more firmly;
The damaged rate of bottle is less than 1/200000;
3. Device Advantages:
Imported electric elements, stable performance, low failure rate;
Adopt photoelectric detection, PLC control system, software operation, conveyor belt,
label accurately with high precision;
No bottle no label, automatic alarm when achieve leakage label.
The whole machine use material S304 stainless steel and anodized senior aluminum alloy.
Technical Parameter :
| Model | PWM-ALS104 |
| Driving Mode | German Avery brand |
| Yield(pcs/min) | 30-200 |
| Operating direction | Left or Right |
| Conveyor Speed(m/min) | ≤30 |
| Labeling Accuracy | ±1.0 mm |
| The inner diameter of label roll | 76 mm |
| The outer diameter of label roll | 350 mm(max) |
| The suitable label size | Width 10-110 mm length 5-120 mm |
| The suitable size of labeling objects | Can customized depends on client product |
| Printer use air | 5kg/cm ² |
| Voltage (In China) | AC220V 50/60HZ Single phase (Can customized as client need) |
| Power(w) | 600W |
| Weight(kg) | 260 |
| Machine size | 1800(L) 800 (W) 1300 (H) mm |
Main Electrical Configuration :
| No | Name | Model | Unit | Brand |
| 1 | PLC control system | 288-1ST20-OAAO | 1 Set | SIEMENS |
| 2 | Touch-screen | 648-OCC11-3AXO | 1 Piece | SIEMENS |
| 3 | Servo motor | 2004-RZ08BAIAN3 | 2sets | America AB |
| 4 | Drive | 2003-CSD3-08BX2 | 2sets | America AB |
| 5 | Frequency converter | 6SL3210-5BB15-5UV0 | 1 set | SIEMENS |
| 6 | photoelectric sensor (check bottle) | FS-N18N | 1 set | Japan KEYENCE |
| 7 | Photoelectric sensor (Check opaque label) | GS61/6.2 | 2 sets | German Leuze |
| Photoelectric sensor (Check opaque and transparent label) | GSU 14B/66.3-S12 | 2 sets | German Leuze | |
| 8 | Main transport motor | M2BAX-0.55KW-4P-B14 | 1 set | Switzerland ABB |
| 9 | Separate bottle Motor | 40W1:30 | 2 sets | German JSCC |
SKILT NOTES
1. Q: What label material does your machine use ?
A: Self-adhesive sticker.
2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .
3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size ( products picture with label on it is rather helpful), then I will suggest you the suitable machine for reference.
4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .

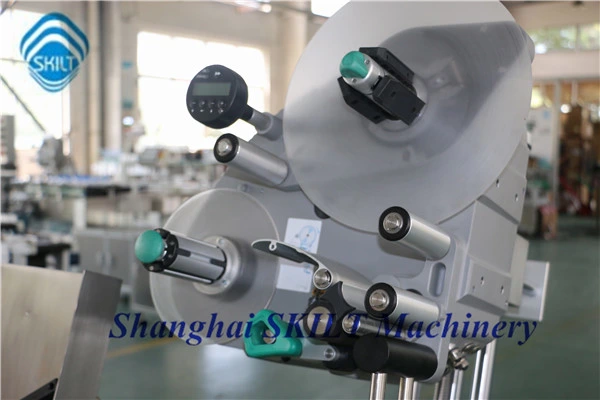

Machine Detailed Images
