Product Description

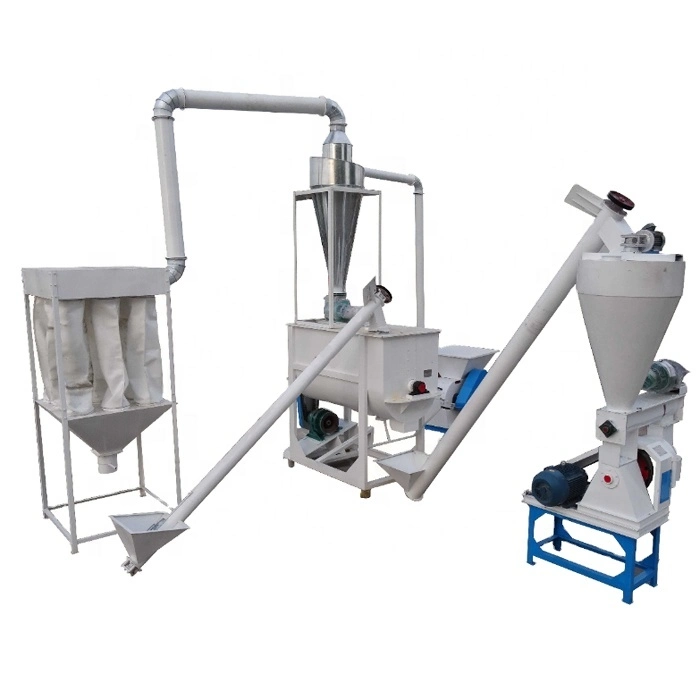

Customized feed pellet production lines
Capacity:1-3 t/h
Tell us what you needs, you can get the solution that suits you.
Application: for making cattle, goose, pig, duck, chicken, sheep, rabbit, and other animals, livestock and poultry feed.
Capacity:1-3 t/h
Tell us what you needs, you can get the solution that suits you.
Application: for making cattle, goose, pig, duck, chicken, sheep, rabbit, and other animals, livestock and poultry feed.
Feed Pellet Production Line Features
1. Customized production capacity as required to meet different scale animal farms and feed processing plants.
2. Wide application for producing various pellet feed for poultry, livestock, and aquatic animals.
3. Various pellet sizes for different animals.
4. Able to processing many kinds of raw materials into feed pellets.
5. Automatic PLC control system for the whole production line.
6. Environment-friendly production with no any waste water and exhaust gas during the production process.
6. Environment-friendly production with no any waste water and exhaust gas during the production process.
7. Widely applied many poultry animal feeds
8.Easy to operate and maintain9. Popular among Customers.
1. Hammer Mill
The task of this section is to crush the clean materials we got in the last section into powder(less than 3mm),and then deliver the powder to the next section.
2. Feed Mixer Machine
The task of this section is:
A. evenly mix different materials into complete powder feed.
B. According to the certain operation order between the bin for the mixer, the mixer and the buffer bin,to ensure the continuous operation.
3. Feed Pellet Machine
CM Series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for chemical industry, fertilizer industry and sugar industry.
5. Packing Machine
Independent packaging system, manual packing ,optional automatic packing like following, high precision.10-50KG/bag.
Size Information
Final Feed Pellets
Packing&Shipping
(1) Warranty of feed pellet machine: One year without the spare parts.
8.Easy to operate and maintain9. Popular among Customers.
Detailed Images
Raw materials
wheat, wheat bran, corn, soybean, Barley, oats, alfalfa, grass, fish meal, bone powder, meat etc materials.
Feed Pellets Processing Technology : Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling and Screening→ Pellet Packing
1. Hammer Mill
The task of this section is to crush the clean materials we got in the last section into powder(less than 3mm),and then deliver the powder to the next section.
2. Feed Mixer Machine
The task of this section is:
A. evenly mix different materials into complete powder feed.
B. According to the certain operation order between the bin for the mixer, the mixer and the buffer bin,to ensure the continuous operation.
3. Feed Pellet Machine
CM Series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for chemical industry, fertilizer industry and sugar industry.
4. Feed Pellet Cooling and Screening Machine
After the pelletizing process, the temperature of the feed pellet is about 60/80 degrees Celsius,with a moisture content of about 15%. A Cooler must then be used to reduce the moisture content of the pellets to about 3/4%, thereby making the pellets easier to store. And for screening and classifying of mash or pellet feed.
After the pelletizing process, the temperature of the feed pellet is about 60/80 degrees Celsius,with a moisture content of about 15%. A Cooler must then be used to reduce the moisture content of the pellets to about 3/4%, thereby making the pellets easier to store. And for screening and classifying of mash or pellet feed.
5. Packing Machine
Independent packaging system, manual packing ,optional automatic packing like following, high precision.10-50KG/bag.
Size Information
Technical Parameters of main equipments for CM ring die feed pellet production line | ||||
Machine | Capacity | Motor | Weight | Dimension |
9FQ Hammer mill | 400kg/h | 7.5kw | 350kg | 1100*550*850mm |
Vertical Feed mixer machine | 500kg/h | 7.5kw | 180kg | 1250*1650*2500mm |
CM Rlat Die feed pellet machine | 200kg/h | 3kw | 175kg | 750*450*800mm |
SKLN Pellet Cooling machine | 2t/h | 0.75kw | / | / |
Pellet Packing machine | 300bags/h | AC 220V 50Hz | / | 2560*650*715mm |
Final Feed Pellets
Our Service
(1) Warranty of feed pellet machine: One year without the spare parts.
(2) The professional and timely after-sales service: 24 hours .
(3) Provide the relative vedio of the machine installation and instruction : Yes.
(5) Voltage : Customized.
(6) The engineer service oversea: Available.
Company Information Zhengzhou Leabon Feed Machinery Co., Ltd. is a professional and advanced supplier which mainly supply feed equipments like feed crusher,mixer,pellet machine,granule crumbler,feed pellet cooler, packing and entire feed pellet production line. Leabon has extensive expertise in the areas of engineering. The continuous research helps us to develop the latest technology in biomass new energy field more effectively.
(3) Provide the relative vedio of the machine installation and instruction : Yes.
(5) Voltage : Customized.
(6) The engineer service oversea: Available.
